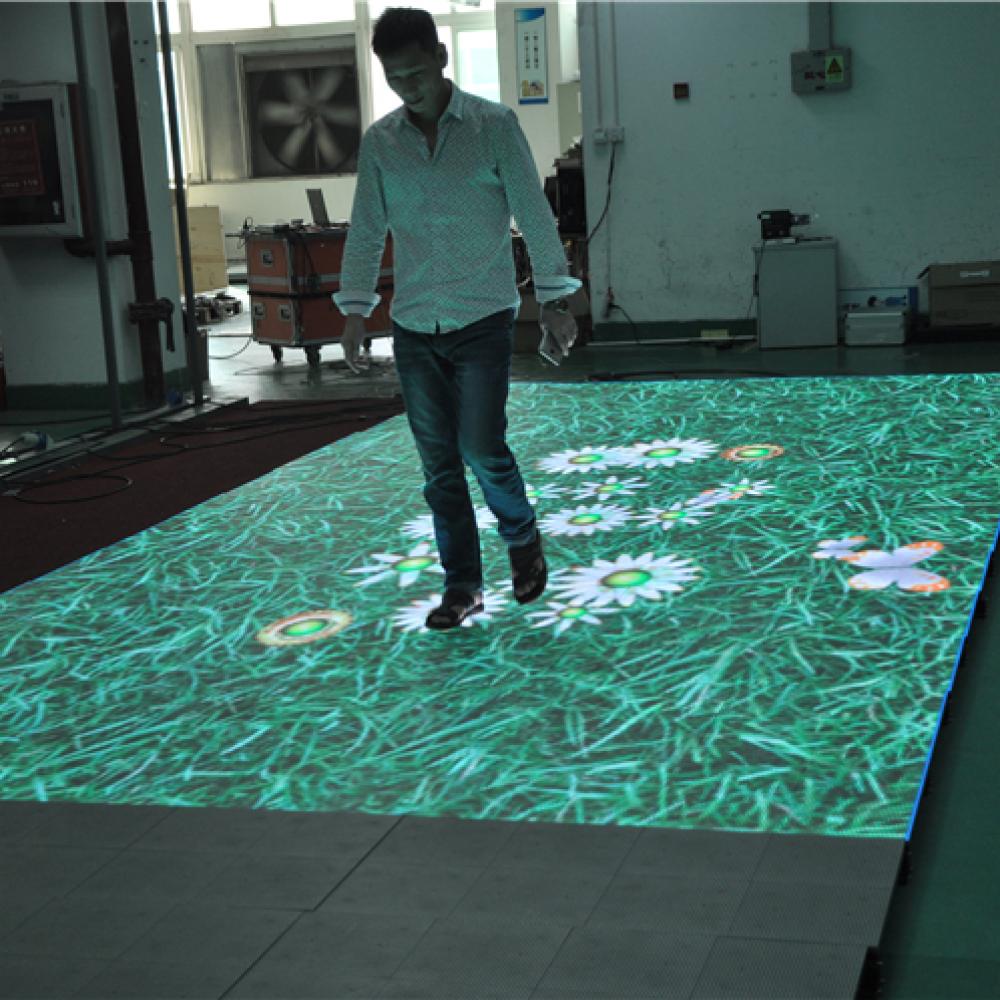

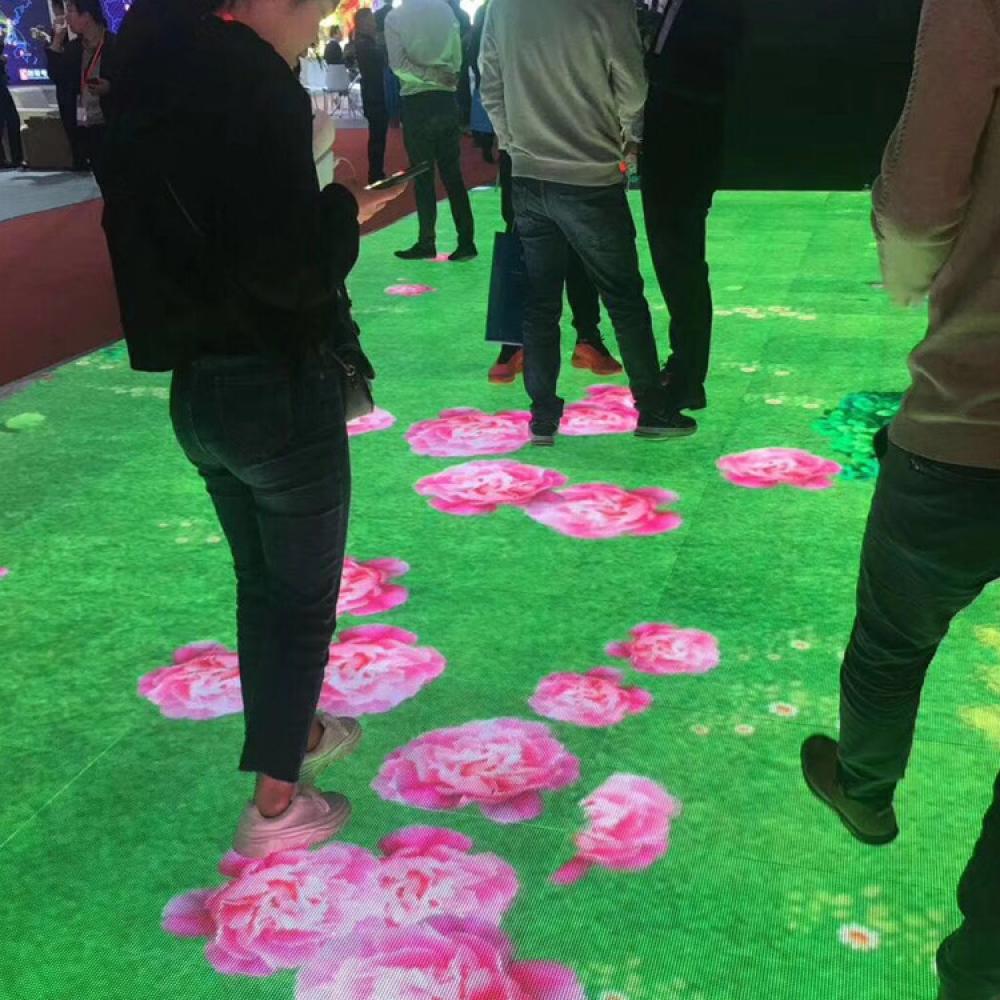

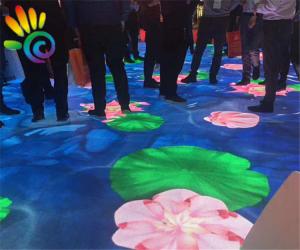

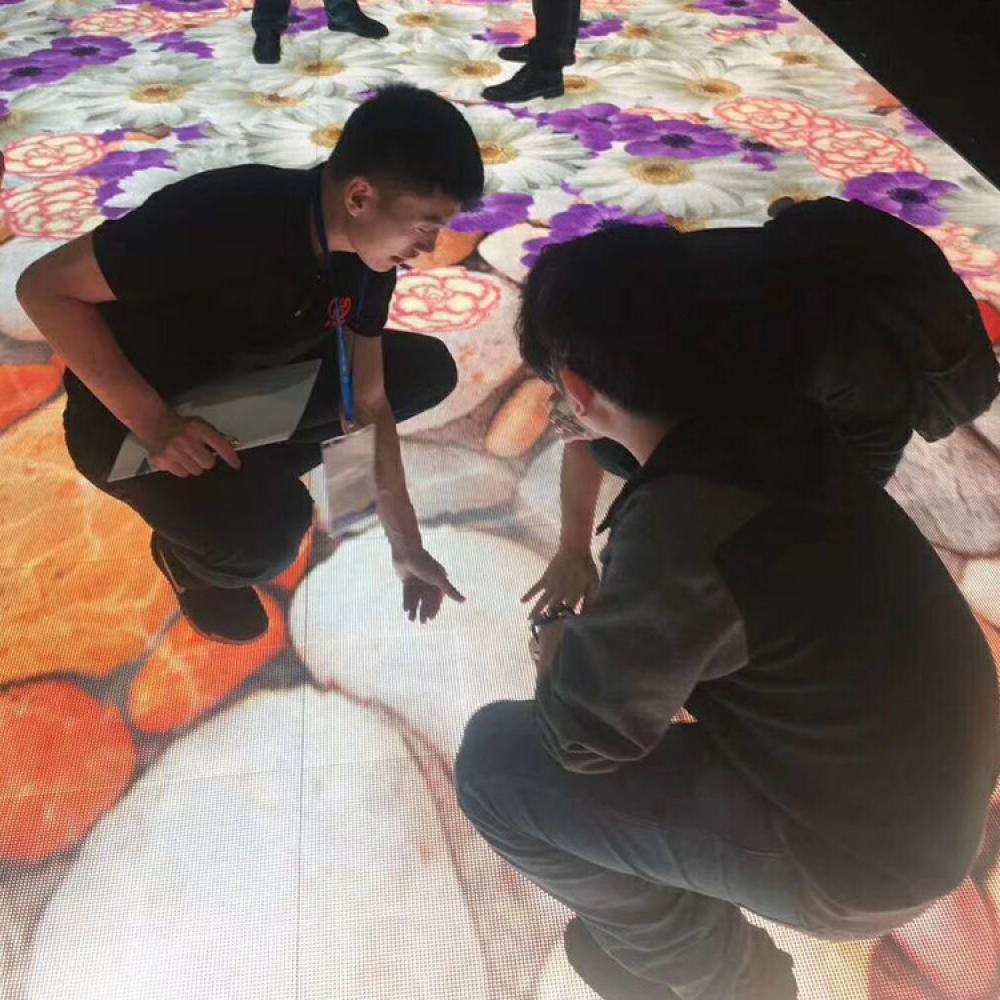

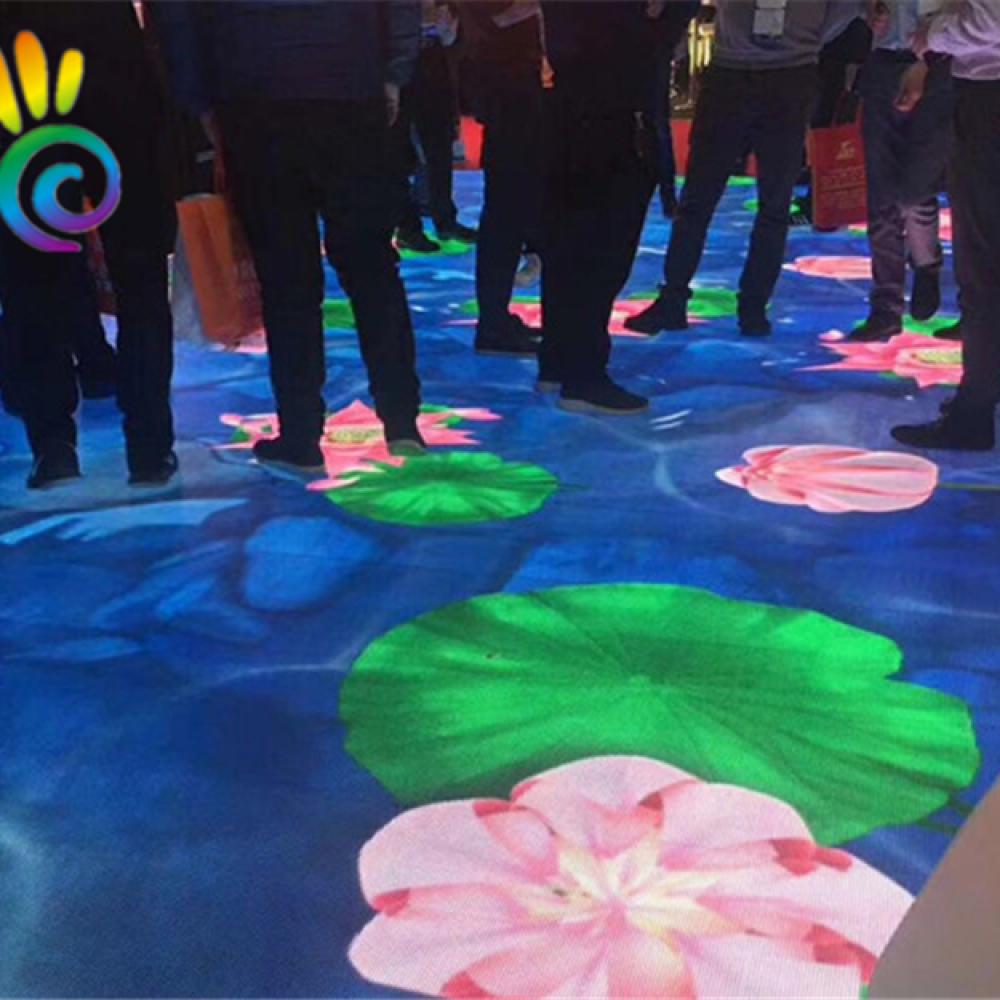

P6.25 Video Interactive Dance Floor
Product Overview
Item No : ML-VD08
Cabinet size :500×1000× 76mm
Cabinet weight :20KG
- Intorduction
- Video Show
|
P6.25 Indoor Interactive Floor LED Screen |
||
|
Pixel |
Pixel pitch |
6.25 mm |
|
Pixel component |
1R1G1B(SMD1921) |
|
|
Resolution |
25600 pixel/m² |
|
|
Module/Cabinet
|
Module size |
250*250*16 mm; 0.6kg |
|
Module resolution |
40*40 pixels |
|
|

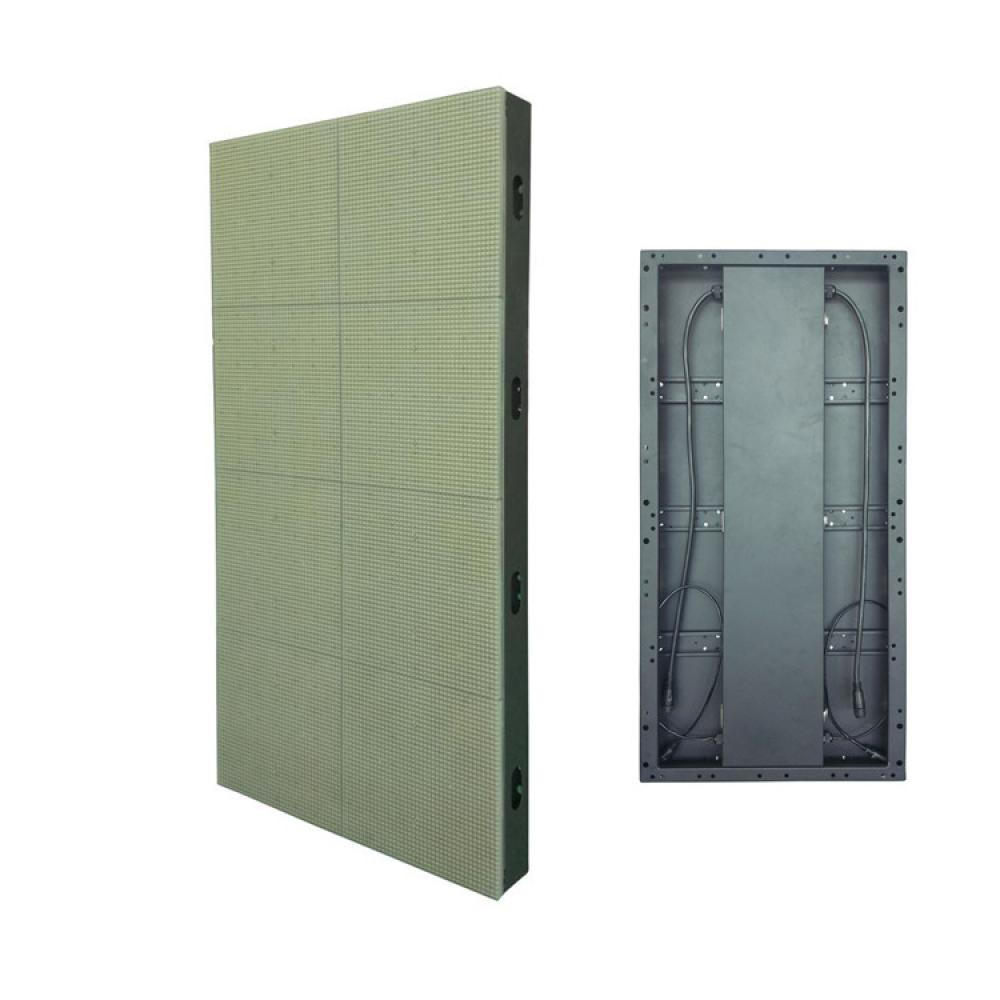

Cabinet size |
1000*500*76 mm |
|
|
Cabinet weight |
18KG/PCS |
|
|
Load-bearing |
1.5t/m² |
|
|
Water-proof |
Front: IP43, Back: IP40 |
|
|
Screen |
Thickness |
75mm |
|
Malfunction rate |
≤4/100000 |
|
|
Splice crevice |
less than 1 mm |
|
|
Viewing angle |
Vertical: 120° Horizontal: 120° |
|
|
Brightness |
≥2800cd/㎡(with mask) |
|
|
Surface evenness |
less than 1 mm |
|
|
Face appearance |
uniform, no reflection |
|
|
Working temperature |
-20~ 50 degree Celsius |
|
|
Humidity |
25°-95° |
|
|
Power supply |
Input voltage (AC) |
94-240 V, ±10% |
|
Earth leakage current |
less than 3 mA |
|
|
Input frenquancy |
47-63 Hz |
|
|
Rated power consumption |
300 w/m² |
|
|
Max power consumption |
700 w/m² |
|
|
Control system |
Control system |
Windows XP + Sending card and receiving card + control software |
|
Control method |
synchronization |
|
|
Control hardware |
DVI graphic card + control card + optical fiber |
|
|
Interface |
Computer interfaces or other device interfaces PAL/ NTSC/ SECAM, S-Video; VGA; RGB; Composite Video; SDI etc. |
|
|
Technical data |
Drive IC |
SUM2017E |
|
Qty of ICs |
128 pcs/m² |
|
|
Refresh rate |
1920 Hz |
|
|
Gray-scale |
8192 |
|
|
Life span |
≥100,000 hours |
|
|
Display content |
Video DVD, VCD, TV, animation, picture, txt |
|
|
Protection |
Moisture-proof, dust-proof, anticorrosion, static-free, lightning protection, overcurrent and short circuit protection, overvoltage and undervoltage protection |
|
