SPECIFICATION

●Item No  ML-C37

●Tricolor LED displaying

●126 channels, automatic jumping frequency

●High anti-jamming ability to ensure working reliability.

●7 groups ID code settable, User can use 7 groups individual wireless net without any interfere each other in the same place.

●Free-lead solder

●Input voltage: AC88～256v 50/60HZ

●Communication distance: 300M

●Work frequency section: 2.4GHz ISM band, 126 channels frequency section.

●Receiver sensitive: -106dBm

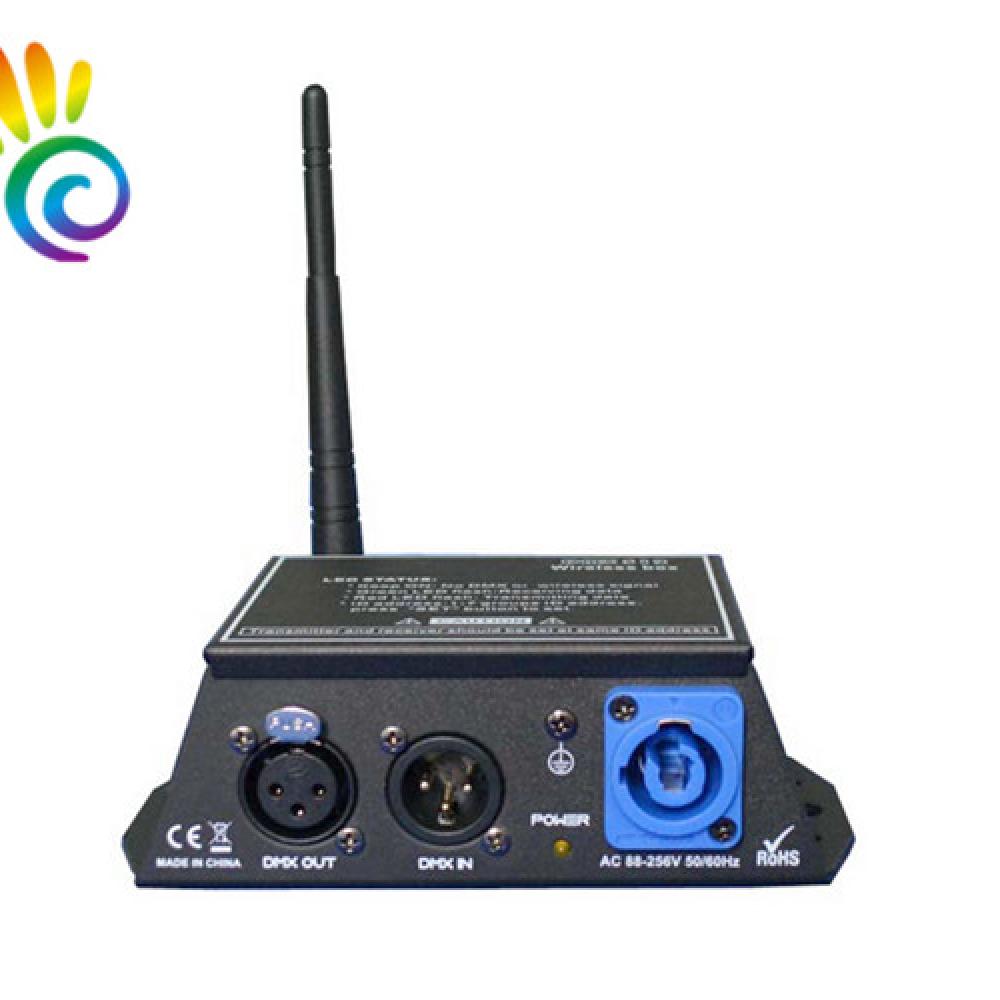

●DMX signal port: 3 Pin plug

●Antenna configuration: standard 100mm spiral SMA antenna, the other optional large gain antenna

●Packing: 40.5X39X40 cm(32pcs)

●Gross weight: 12kg

ID code and LED color corresponding correlation：

1: RED

2: GREEN

3: RED+GREEN=YELLOW

4: BLUE

5: RED+BLUE=PURPLE

6: GREEN+BLUE=CYAN

7: RED+GREEN+BLUE=WHITE
