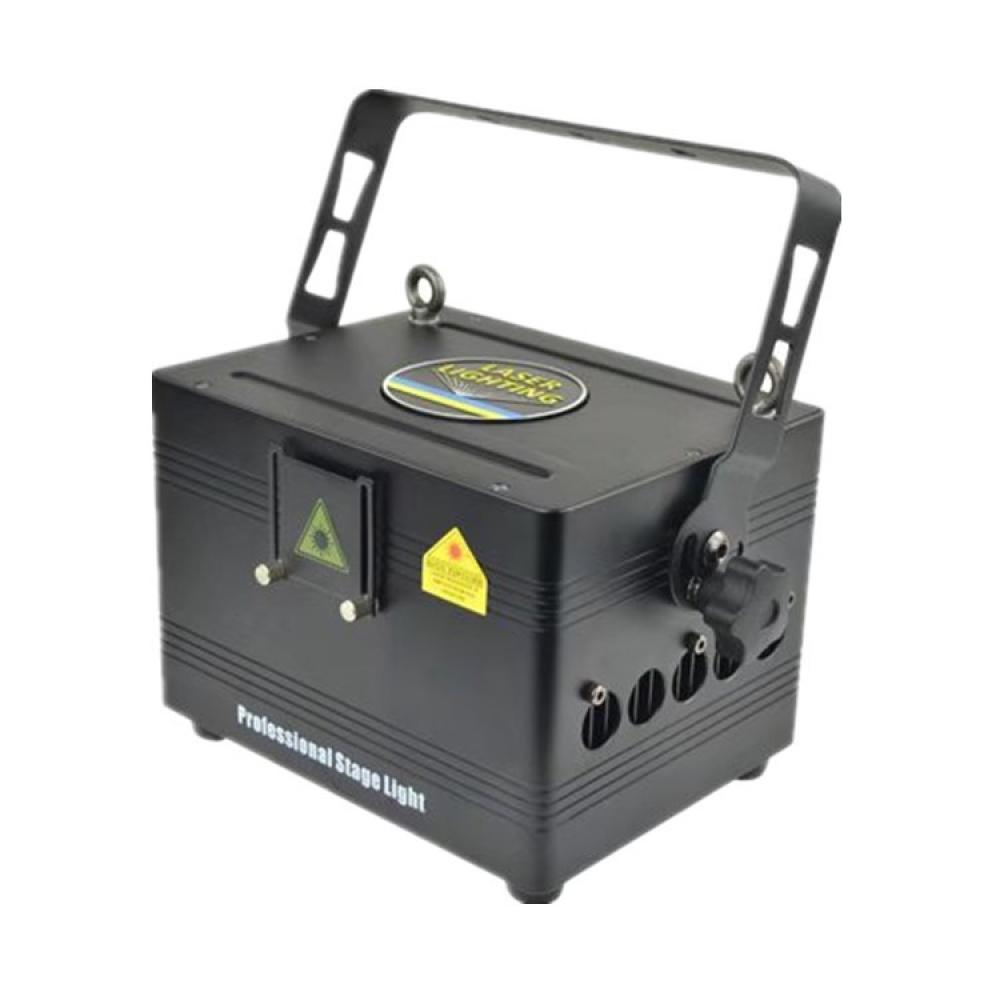

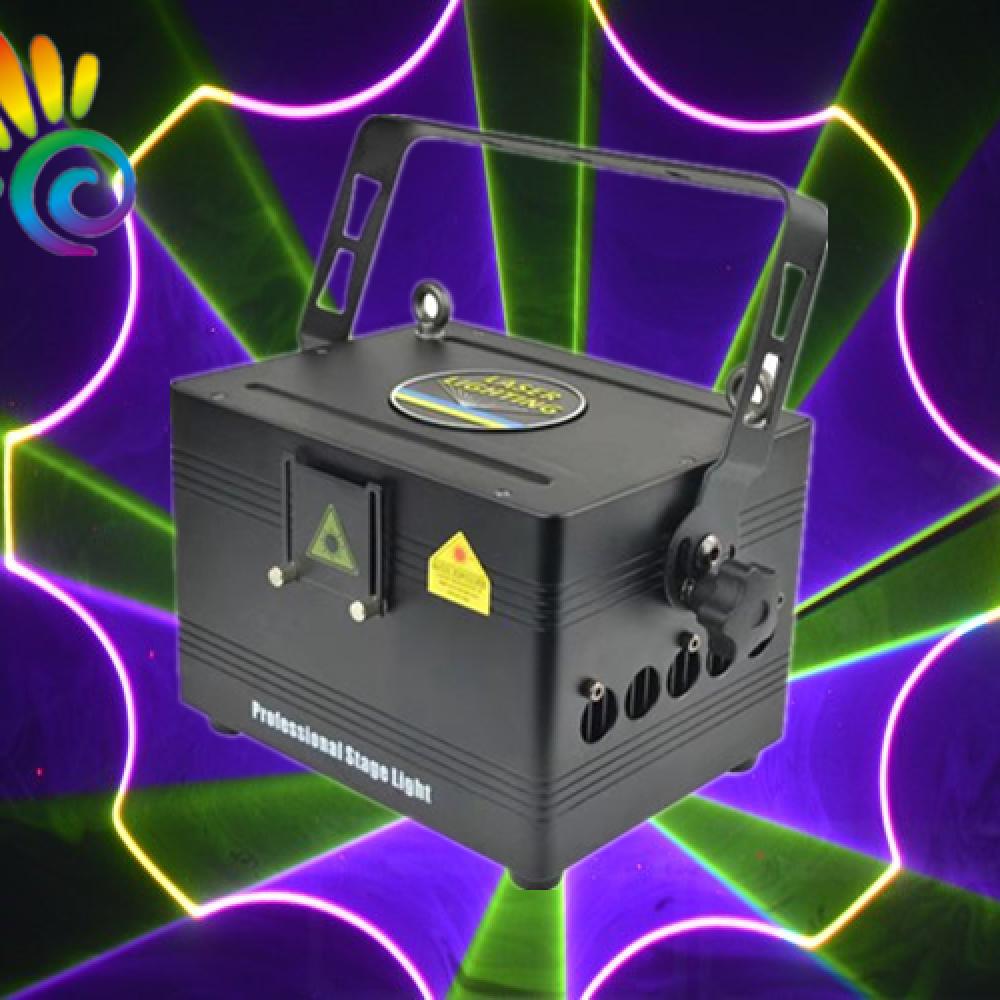

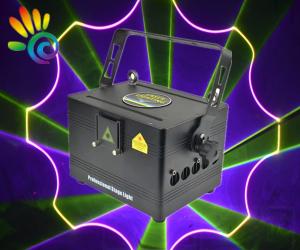

2W/3W RGB Animation Laser
Product Overview
Item No : ML-L07A
Size: 25x28x18cm
N.W/G.W.：3.4/4.5kg
Packing size：58*33.5*27cm（2pcs）
N.W/G.W.：8/9.5kg
- Intorduction
- Video Show
SPECIFICATION:
●Item No : ML-L07A
●2W Configuration: R635nm/500mW; G520nm/500mW; B445/1W (LD)
●3W Configuration:R635nm/700mW; G520nm/900mW; B445/1400mW (LD)
●Rated voltage and power：AC100~240V 50/60Hz; <100W
●Scanner：2W 20K high speed module scanner,3W 30K high speed module scanner
●Modulation: TTL/analog

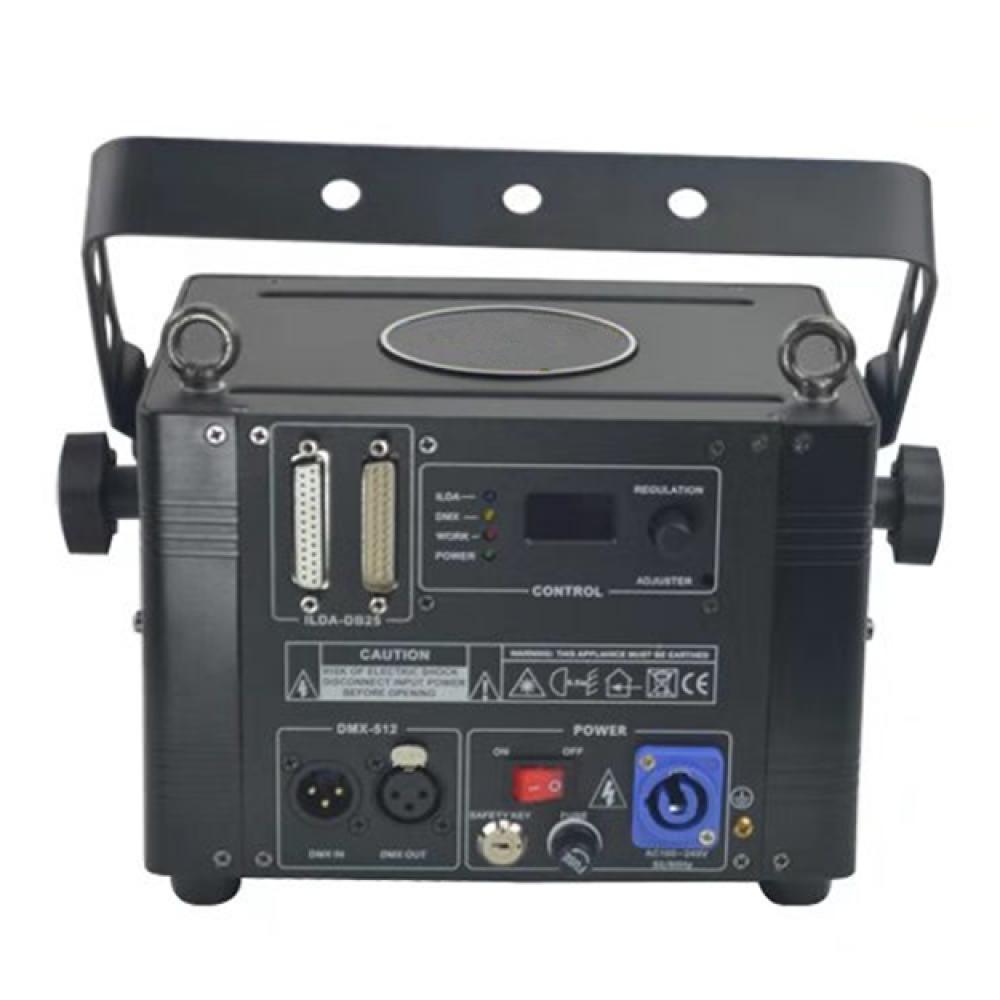

●Control mode：Music(with the function of BLACK OUT)/Automatic/Master-Slave/DMX512(25)/ ILDA
●Demonstration effect:DMX Built-in 140 pattern with 20 groups of animation
●DMX effect: pattern can output the function of unique blanking, strobing, rotating, movement, billowing, zoom, drawing, speed and color etc.
●Application: Disco, club, KTV, Pub, family party, advertising promotion, etc.
●Size: 25x28x18cm
●N.W/G.W.：3.4/4.5kg
●Packing size：58*33.5*27cm（2pcs）
●N.W/G.W.：8/9.5kg
Scan angle: ±30°; Input signal: ±5V; Linearity distortion<2%
