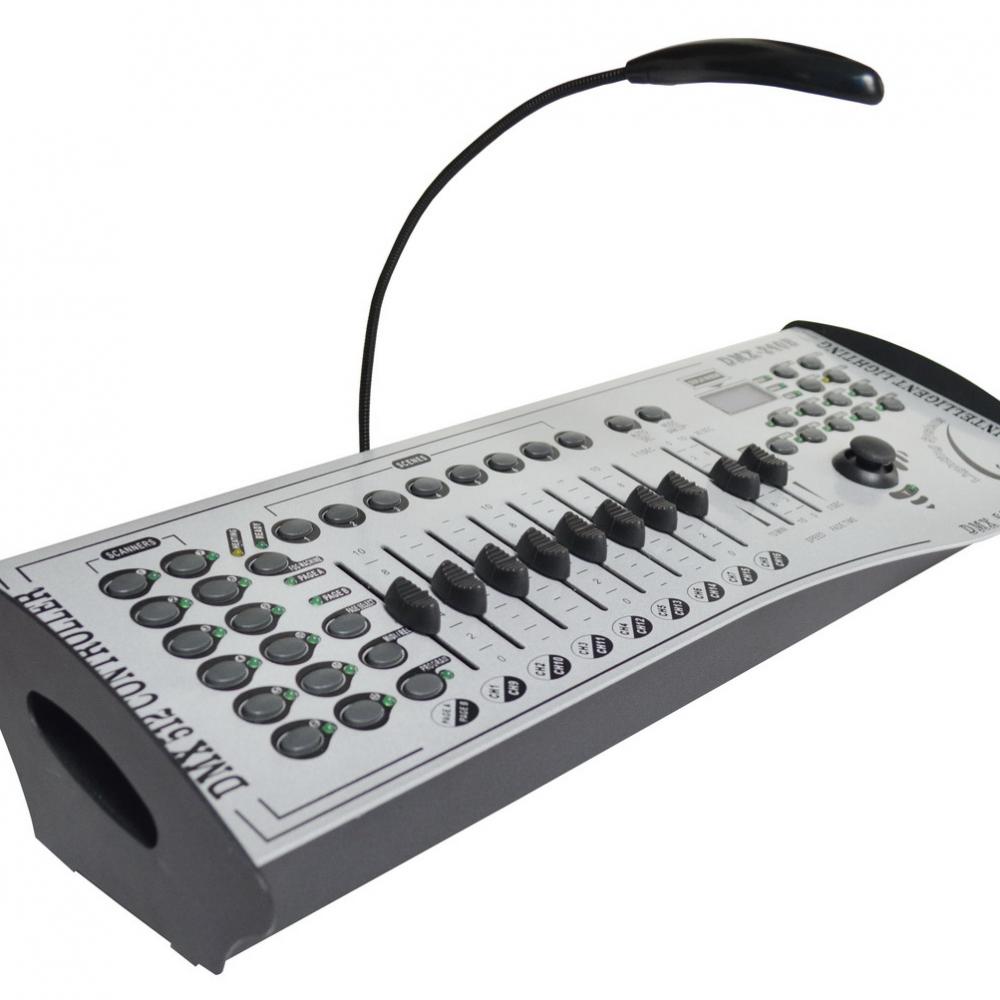

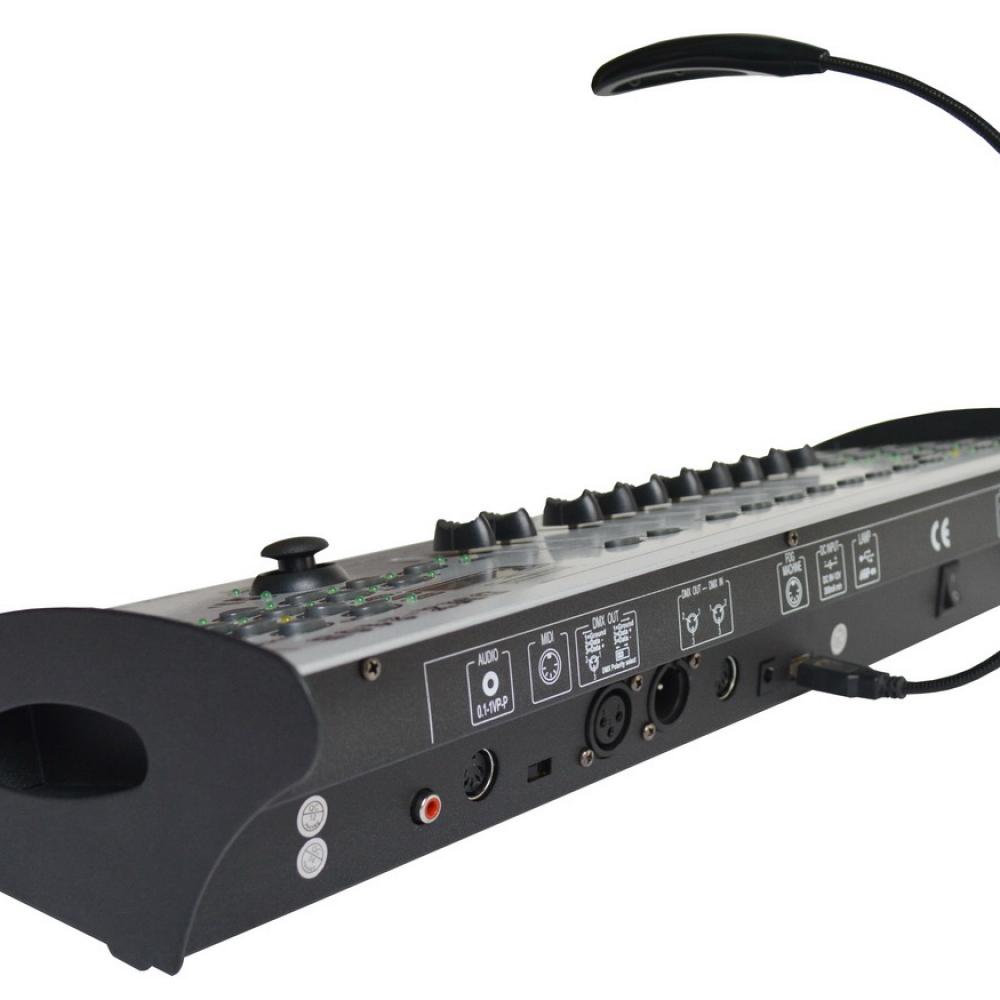

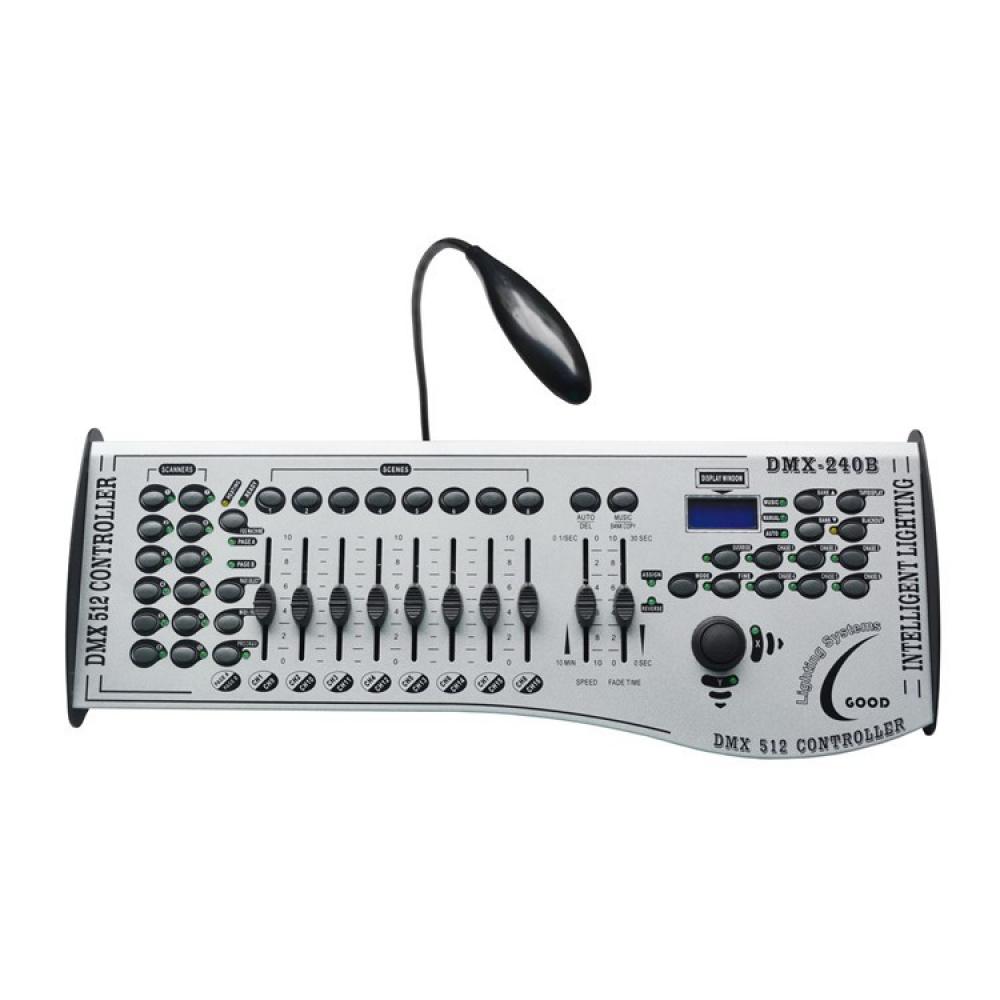

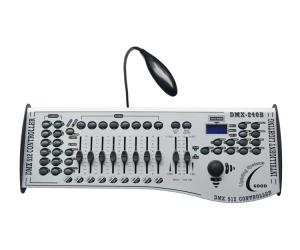

DMX-240B controller
Product Overview
Item No : ML-C01E
Dimension (mm): 482 × 190 × 90
Net Weight: 2.6kg
- Intorduction
- Video Show
SPECIFICATION:
Item No : ML-C01E
12 scanners of 16 channels each
6 programmable chases have 30 banks each
30 banks have 8 programmable scenes each
8 slider for manual control of channels
Assignable joystick for ease of movement
File dump allows data to be sent for received between 2 units auto mode program controlled by speed and fade time sliders
Fade time/assign fade time reversible DMX channels fixture to react in opposition to others in a chase
In fade mode, ALL (all channel) or X/Y only could be selected separately
8 channel or 16 channel mode
Fine adjustment for Wheel pan and tilt
Blackout master button
Manual override button allow you to grab any fixture on the fly
Built in microphone for music triggering
Midi control over banks, chases and blackout
DMX polarity selector
Power failure memory
Fog machine connector
LED lamp connector
Power input: DC 9-12V 1000mA
Audio input: by built-in microphone or line in, 100mv-1vpp
DMX in/out: 3 pin male/female XLR
Midi in: 5 pin multiple socket
Dimension (mm): 482 × 190 × 90
Net Weight: 2.6kg
