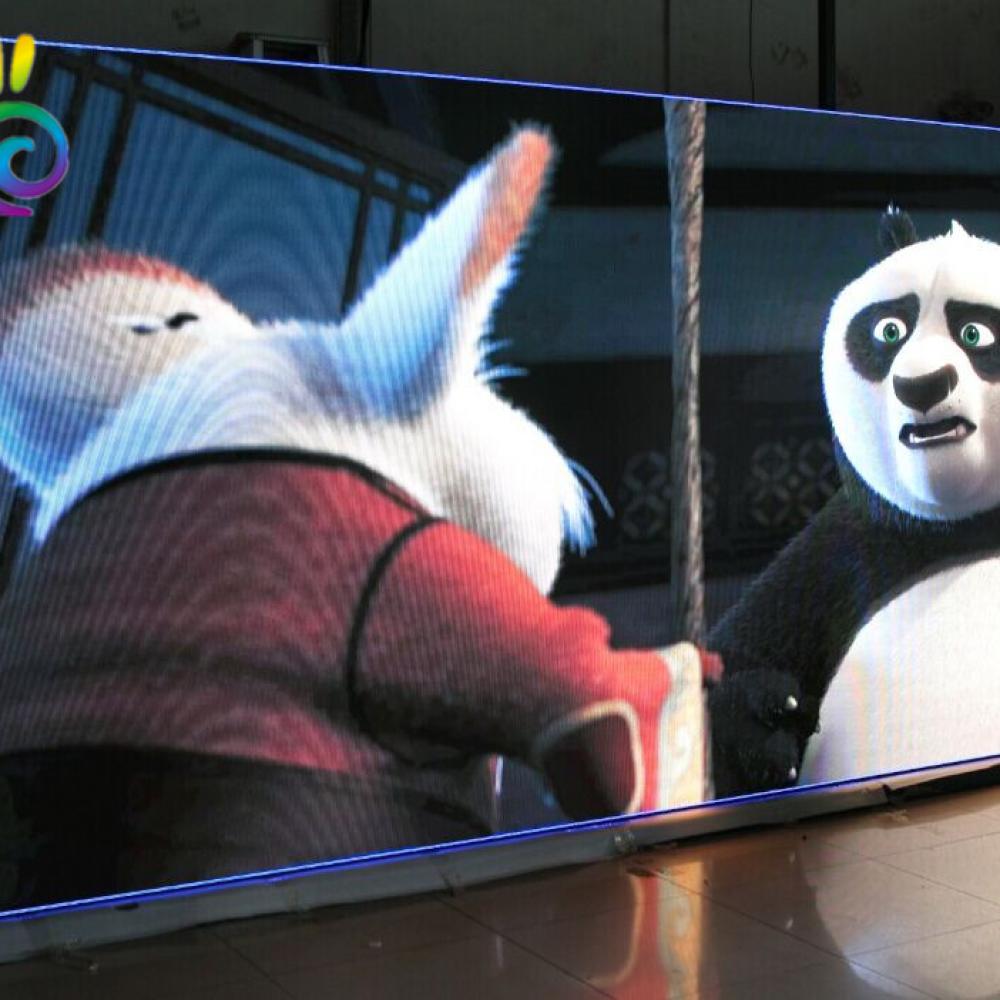

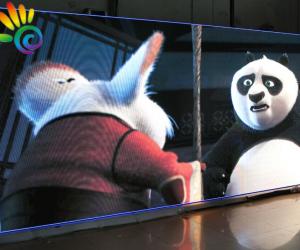

P2.5 HD indoor display screen
- Intorduction
- Video Show
SPECIFICATION:
Item No : ML-DS13
Pixel Pitch 2.5mm
LED Arrangement 1R1G1B
LEDs SMD2121 Black
Module size 160mm * 160mm
Module Resolution 64* 64
Drive chips MBI5153
Drive method constant-current drive
Scan method 1/16 scan
Working Voltage AC110/220±10% 50/60Hz
Average Power Consumption 500 W/ 2
Max Power Consumption 1200W/ 2
Power Switch Auto
Power Supply 5V60A
Power Supply Load 5V/60A
Brightness 1200--1500CD/SQM
Refresh Frequency 500--800Hz
Density 160000 dots/sqm
Viewing Angle H:±150° V:±120°
Best Viewing Distance 2-30m
Surface roughness <1mm
Gap between modules <1mm
Grey Level 256
Protection Level IP34
UA Protection 100%
Working Environment -20℃ ～ +50℃
Storage Environment -20℃ ~ +50℃
Life Span 100000hours
PC Display mode 1024 * 768
Controlling system Main control card + DVI Card+PCTV Card + Fiber transmission (selective)
Effective communication distance Netcable: 120m without amplifier
Item No : ML-DS13
Pixel Pitch 2.5mm
LED Arrangement 1R1G1B
LEDs SMD2121 Black
Module size 160mm * 160mm
Module Resolution 64* 64
Drive chips MBI5153
Drive method constant-current drive
Scan method 1/16 scan
Working Voltage AC110/220±10% 50/60Hz
Average Power Consumption 500 W/ 2
Max Power Consumption 1200W/ 2
Power Switch Auto
Power Supply 5V60A
Power Supply Load 5V/60A
Brightness 1200--1500CD/SQM
Refresh Frequency 500--800Hz
Density 160000 dots/sqm
Viewing Angle H:±150° V:±120°
Best Viewing Distance 2-30m
Surface roughness <1mm
Gap between modules <1mm
Grey Level 256
Protection Level IP34
UA Protection 100%
Working Environment -20℃ ～ +50℃
Storage Environment -20℃ ~ +50℃
Life Span 100000hours
PC Display mode 1024 * 768
Controlling system Main control card + DVI Card+PCTV Card + Fiber transmission (selective)
Effective communication distance Netcable: 120m without amplifier
