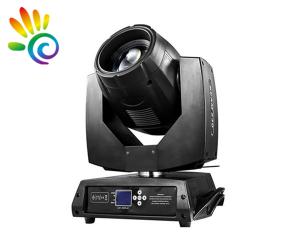

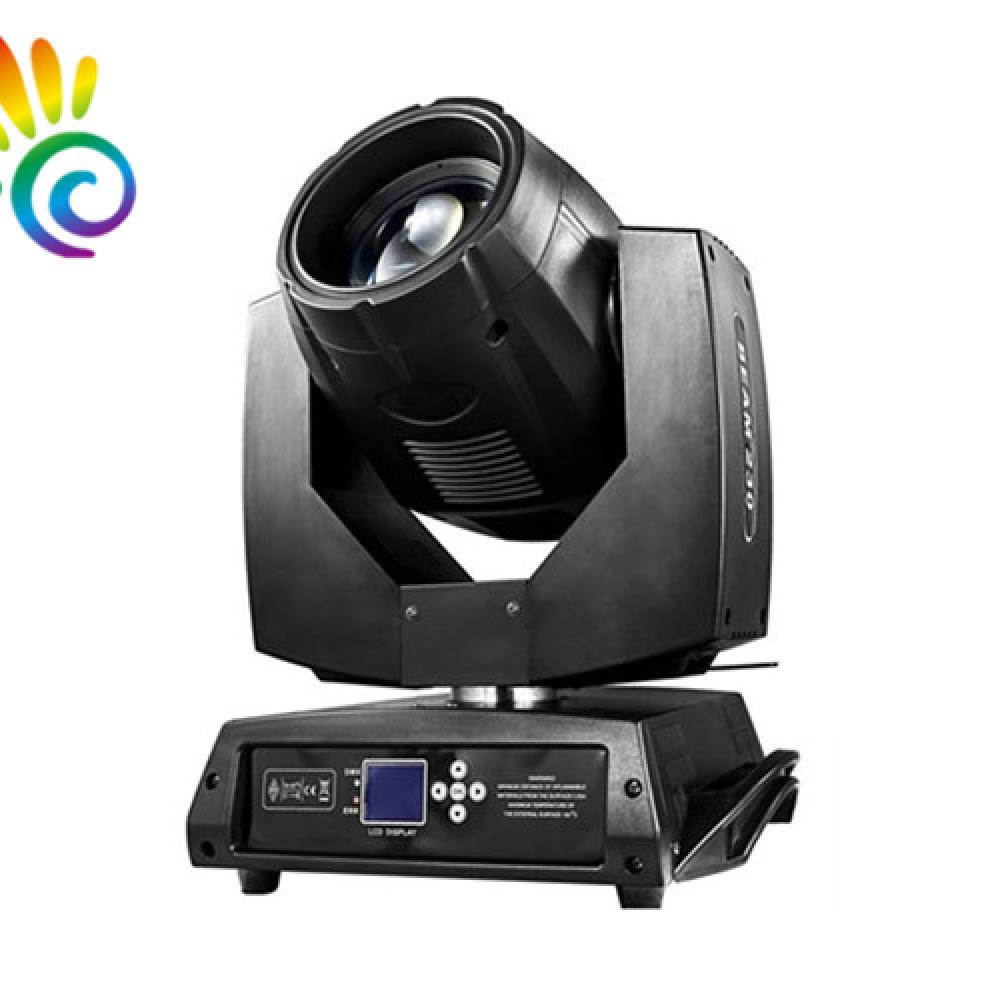

230W Beam(7R)Moving Head Light


Product Overview

Item No:ML-M03E

Product Size: 410x360x500mm
Carton size: single lamp carton: 440*410*540mm
Weight: 18.5kg
Fly case: 740*460*710mm (2in1)
Weight: 63kg

  • Intorduction
  • Video Show

SPECIFICATION:
●Item No : ML-M03E
●Voltage: AC100-240V, 50/60Hz
●Rated power: 350W
●Light source: Philips MSD Platinum7R
●Ballast: Electronic Ballast
●Color Temperature: 8500K
●Lamp Life: 2000H
●Motor: 13 Silent Stepping Motor
●Color wheel: 14 colors + white + rainbow effect
●Gobo wheel: 17 gobos + white + rainbow effect
●Prism: 8/16+ rotating prism
●Atomization: atomization effect, 0-100% linearly adjustable
●Dimmer: 0-100% linear regulator focus
●Strobe: Strobe two-piece, adjustable speed strobe (0.5-12 times/sec)
●Rotation angle: Horizontal 540°, vertical 270°
●Control: International standard DMX512 signal, 3 core, DMX512 Interface
●Communication Protocol: USITT DMX-512
●Channels: standard 16-channel mode
●Display: LCD display
●Optical system: high-precision quartz lens, to minimize light loss rate
●Protection: IP20
●Product Size: 410x360x500mm
●Carton size: single lamp carton: 440*410*540mm
●Weight: 18.5kg
●Fly case: 740*460*710mm (2in1)
●Weight: 63kg
