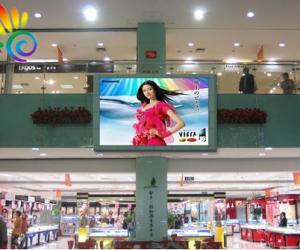

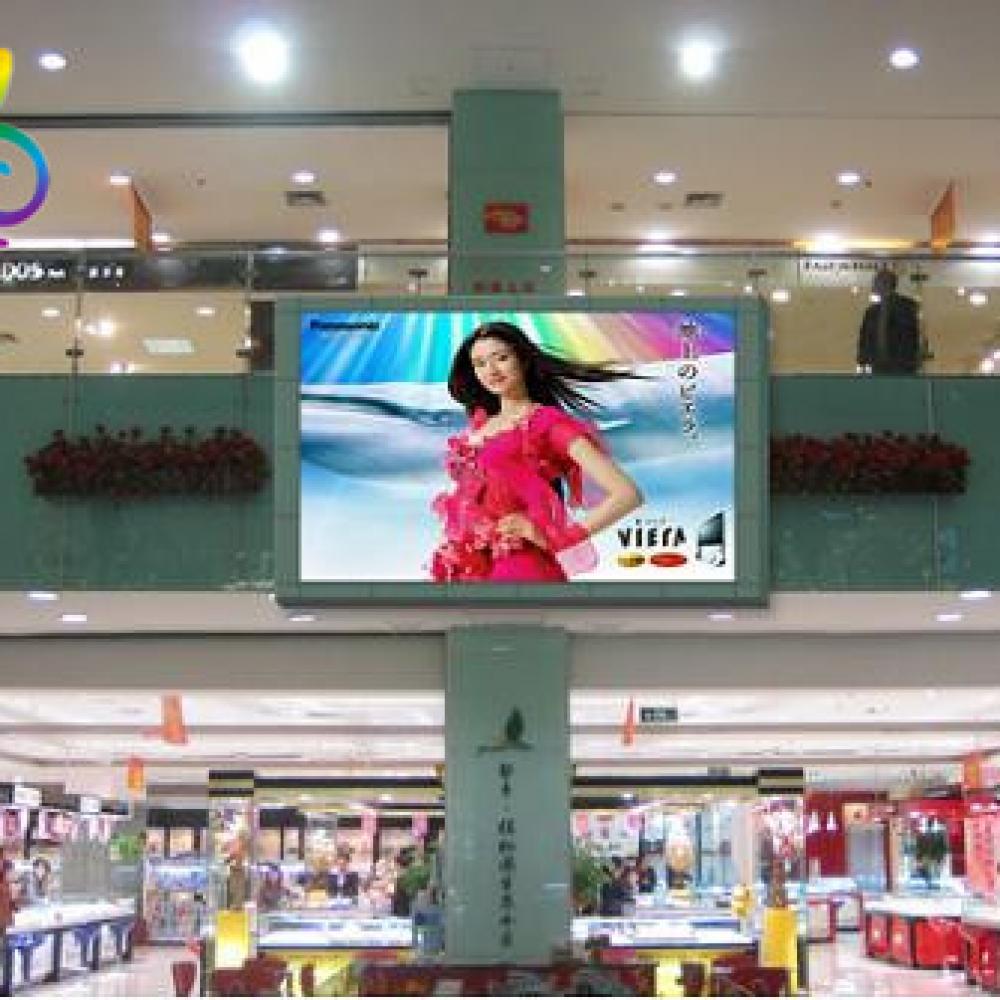

P10 indoor full color screen
Product Overview
Item No : ML-DS03
Product Name：P10 indoor full color screen
- Intorduction
- Video Show
SPECIFICATION:
Item No : ML-DS03
Physical spacing 10mm
Physical density 10,000 points / m2
Emitting some color 1R1G1B
Control mode constant current control
Scan mode to scan 1/8
LED standards SMD3528
LED parameters (R): the d (620-625nm) IV: (250-350mcd)
Green (G): the d (520-525nm) IV: (900-1300mcd)
Blue (B): the d (465-470nm) IV: (150-250mcd)
Brightness ≥1200CD / m
Maximum power consumption: 500W / m
Average: 200W / m
Refresh rate ≥1200Hz
Best viewing distance 7-38m
Best viewing angle H: ± 140 ° V: ± 120 °
Module resolution 32 × 16
Unit board size 320mm × 160mm
Weight 0.38kg unit board
Cell plate thickness / band cylinders thickness 15mm / 28mm

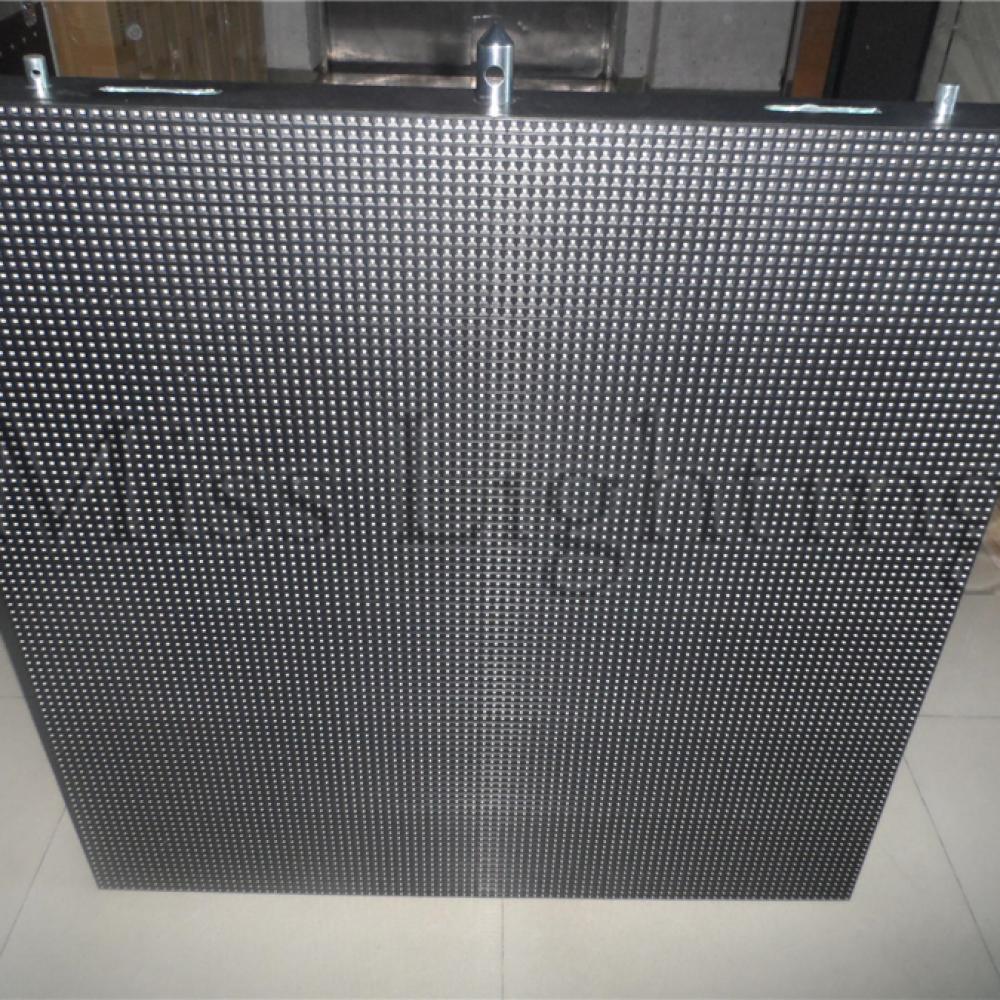

Cabinet Resolution 96 × 96 points
Case Size 960mm × 960mm
Cabinet Material conventional metal box / General Aluminum
Case weight standard box: 42kg/㎡
Cabinet thickness simple box: 6cm Standard Cabinet: 10cm
Item No : ML-DS03
Physical spacing 10mm
Physical density 10,000 points / m2
Emitting some color 1R1G1B
Control mode constant current control
Scan mode to scan 1/8
LED standards SMD3528
LED parameters (R): the d (620-625nm) IV: (250-350mcd)
Green (G): the d (520-525nm) IV: (900-1300mcd)
Blue (B): the d (465-470nm) IV: (150-250mcd)
Brightness ≥1200CD / m
Maximum power consumption: 500W / m
Average: 200W / m
Refresh rate ≥1200Hz
Best viewing distance 7-38m
Best viewing angle H: ± 140 ° V: ± 120 °
Module resolution 32 × 16
Unit board size 320mm × 160mm
Weight 0.38kg unit board
Cell plate thickness / band cylinders thickness 15mm / 28mm
Cabinet Resolution 96 × 96 points
Case Size 960mm × 960mm
Cabinet Material conventional metal box / General Aluminum
Case weight standard box: 42kg/㎡
Cabinet thickness simple box: 6cm Standard Cabinet: 10cm
