SPECIFICATION:

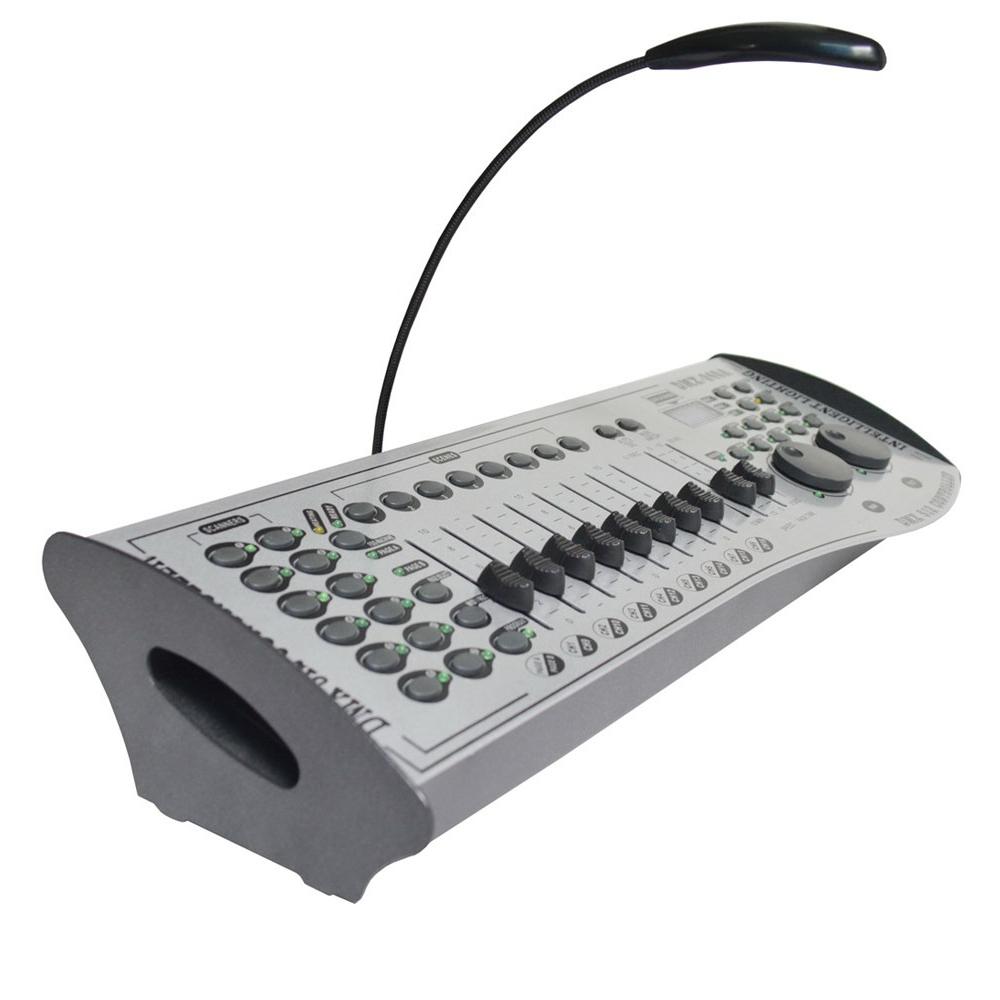

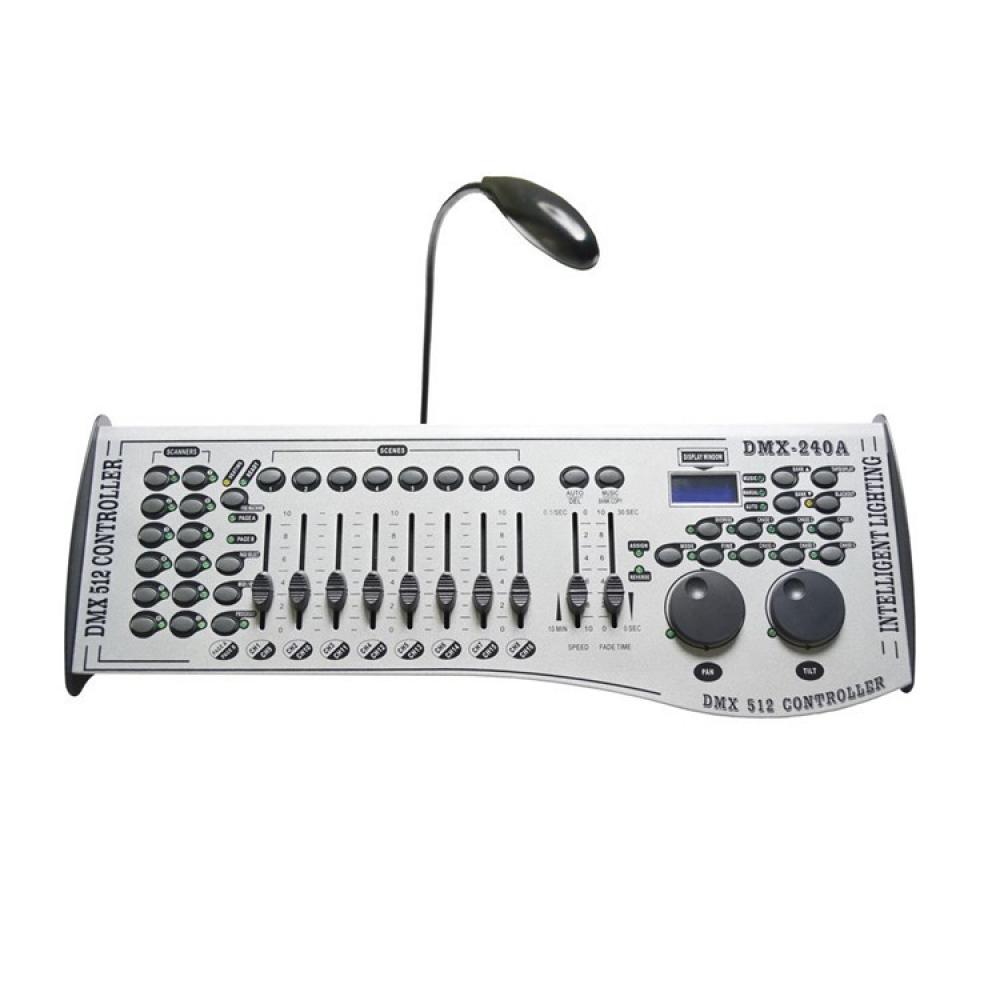

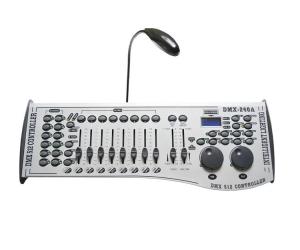

 ●Item No : ML-C01
 ●12 scanners of 16 channels each
●6 programmable chases have 30 banks each
●30 banks have 8 programmable scenes each
●8 slider for manual control of channels
●2 assignable wheels for ease of movement
●File dump allows data to be sent for received between 2 units
●Auto mode program controlled by speed and fade time sliders
●All fade time adjustable
●In fade mode, ALL (all channel) or X/Y only could be selected separately.
●Reversible DMX channels fixture to react in opposition to others in a chase
●8 channel or 16 channel mode
●Fine adjustment for wheel PAN and TILT
●Blackout master button
●Manual override button allow you to grab any fixture on the fly
●Midi control over banks, chases and blackout
●DMX polarity selector
●Power failure memory
●Fog machine connector
●LED lamp connector
●Power input: DC 9-12V 1000mA
●Audio input: by built-in microphone or line in, 100mv-1vpp

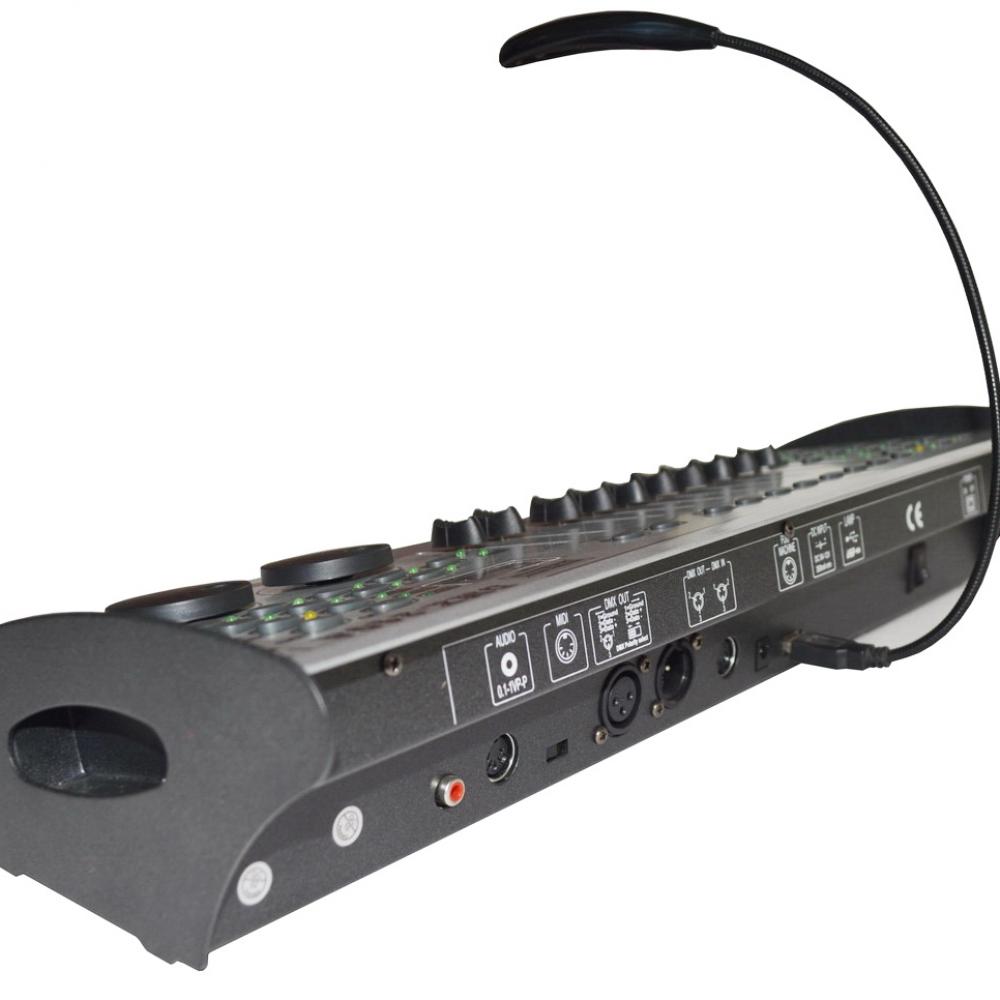

●DMX in/out: 3 pin male/female XLR
●Midi in: 5 pin multiple socket
●Dimension (mm): 482 × 190 ×90
●Net Weight: 2.6kg
