SPECIFICATION:

●Item No : ML-C05

●DMX512/1990 Standard 228 channels

●LCD display with backlight

●Up to 12 scanners may be connected with a maximum of 16 channels each 24 Dimmer channels,12 channels for switch of lamp

●8 slider for manual control of channels

●Assignable joystick for ease of movement

●Manual operate enable

●12 chases (at most 40 steps for each chase)

●480 chase steps

●Range of cross time: 0s-25.5s

●Range of speed time: 0.1s-25.5s

●Each chase speed and cross time can be saved automatic

●512K high capacity memory card

●The Data auto-saves

●free-lead solder

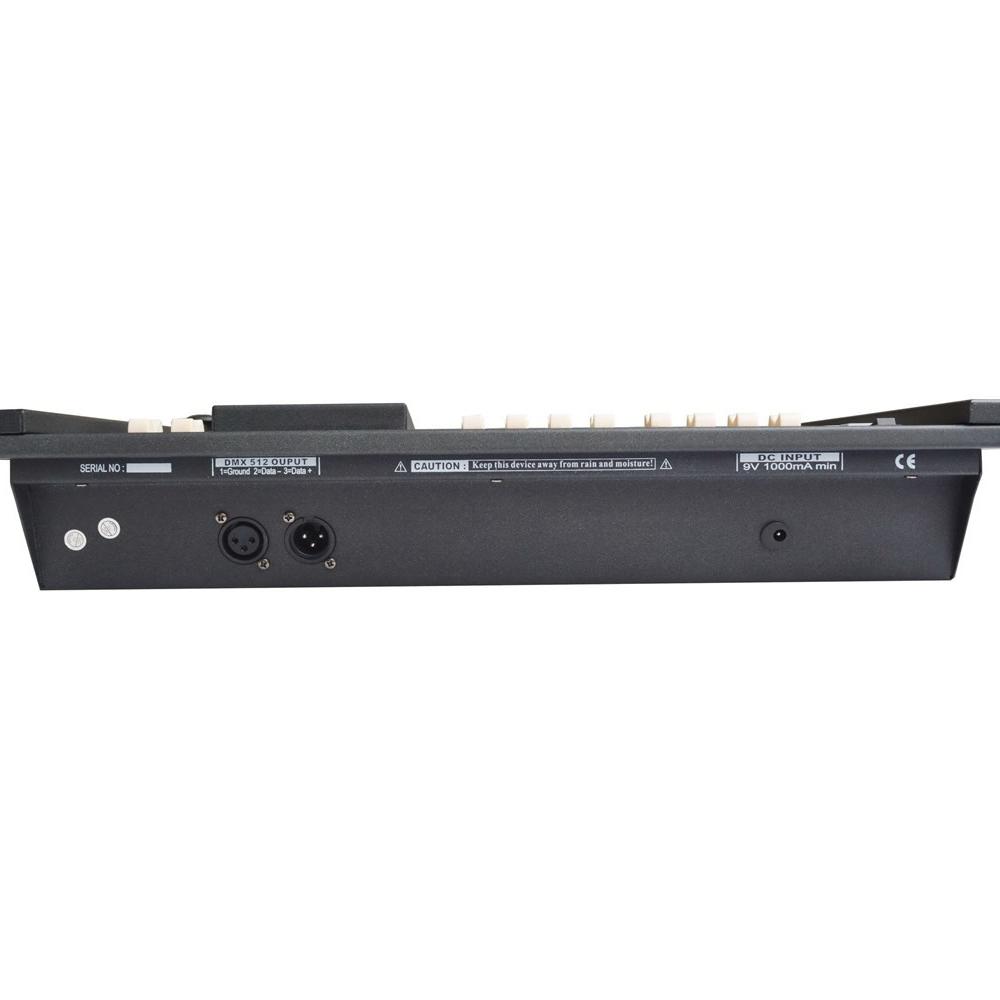

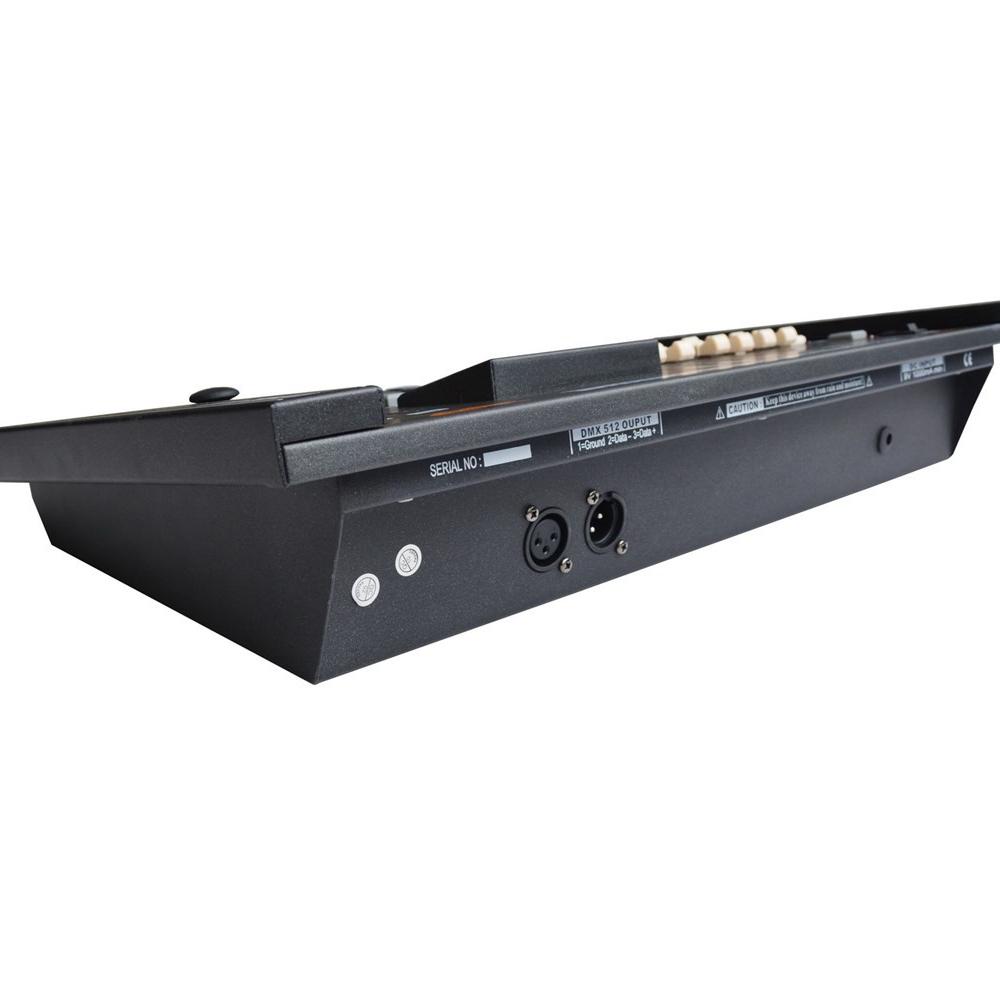

●DMX signal output connector: XLR-D3F

●Power supply: DC9V  1000mA

●Dimension: 485mm×250mm×91mm

●Net Weight: 3.8Kg

●Packing size：535 x 315 x 135 (MM)

●G.W: 4.5 kg
