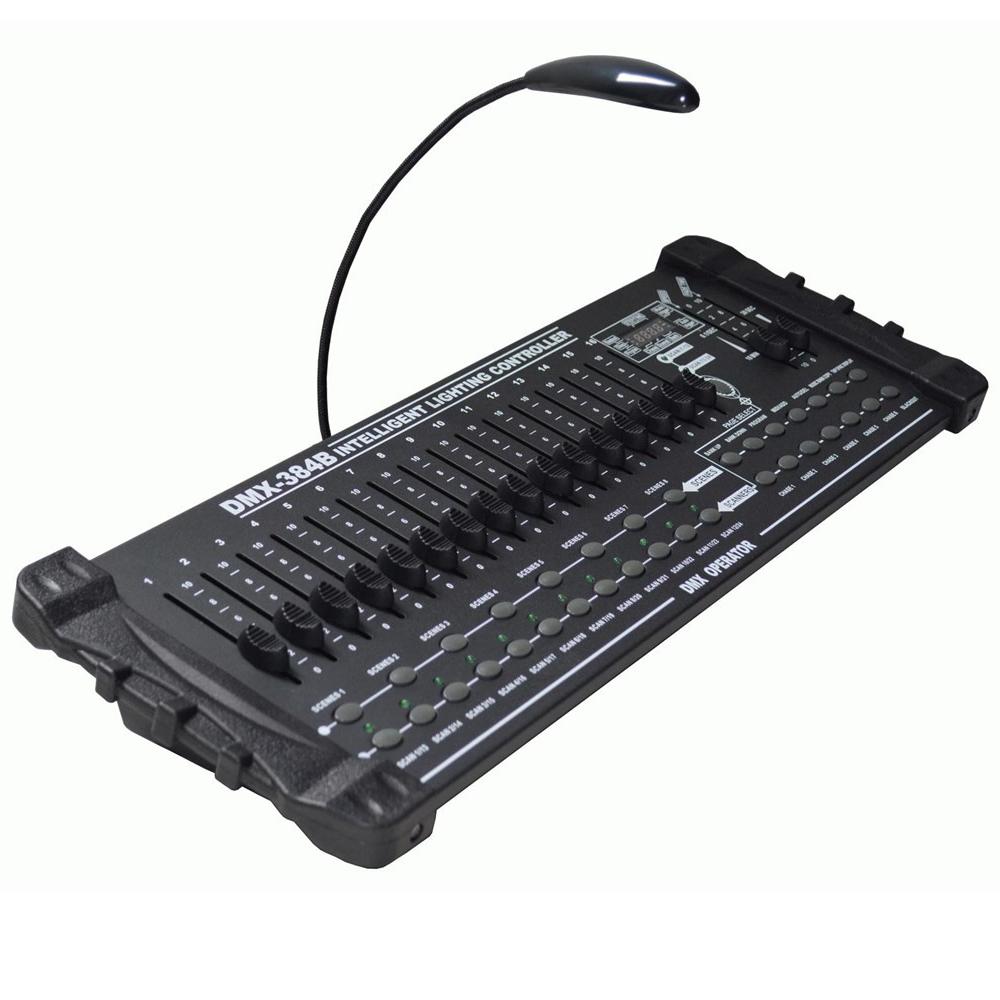

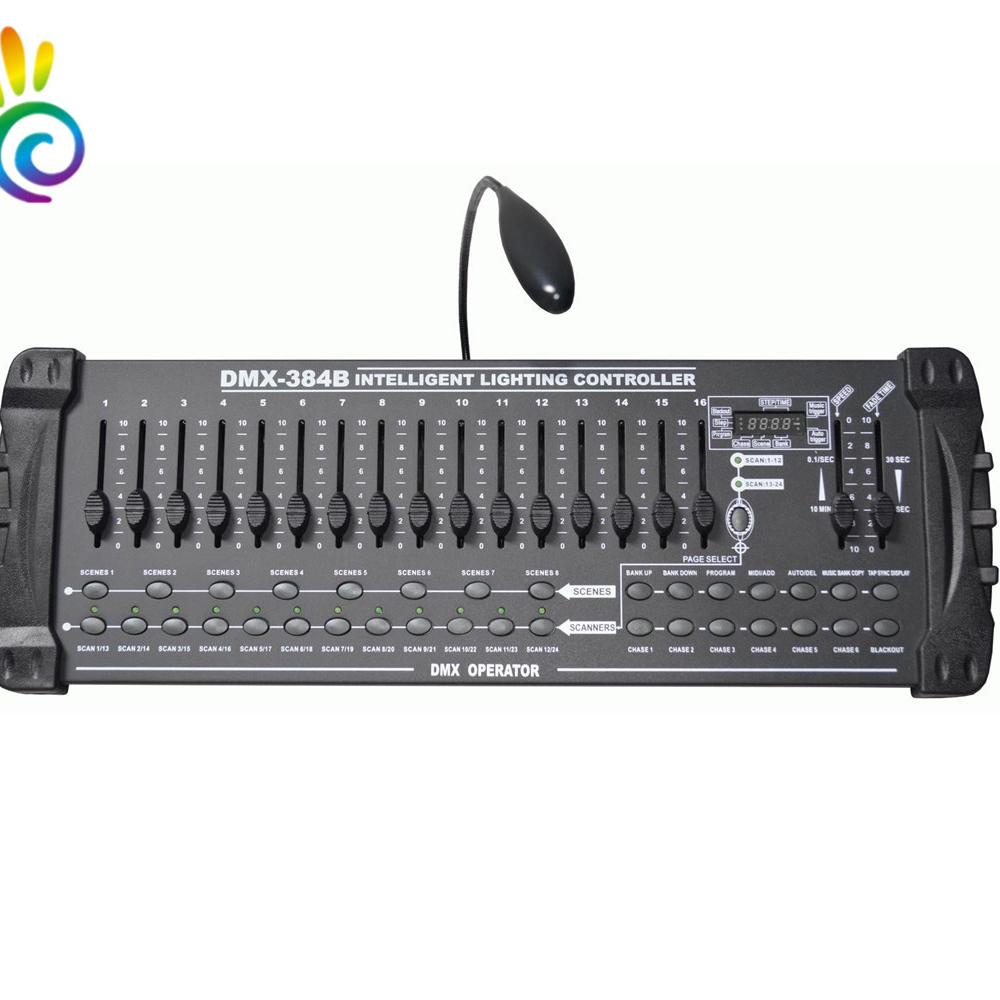

DMX 384B controller
Product Overview
Item No : ML-C02
Dimension: 520mm×183mm×73mm
Carton size:610mm × 210mm × 135mm
N .W: 2.7 kg
G.W: 3.4 kg
- Intorduction
- Video Show
SPECIFICATION:
●Item No : ML-C02
●DMX512/1990 Standard
●Total of 384 output channels
●30 banks have 8 programmable scenes
●16 slider for manual control of channels
●Run last CHASE or BANK continuous when power on again
●Midi control over banks, chases and blackout
●Record up to 6 programmable chases with fade time and speeds
●LED function and program display
●Built in microphone for music triggering
●Auto mode program controlled by fade time sliders

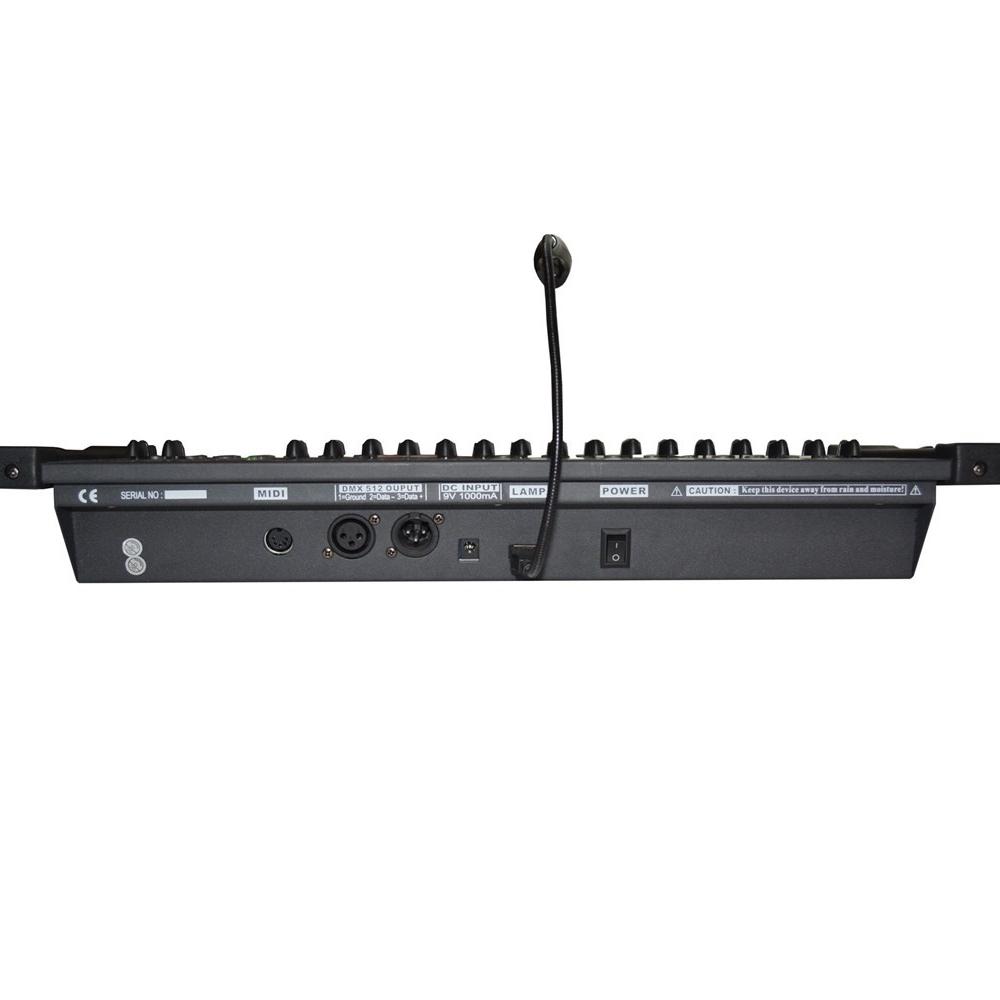

●DMX in/out: 3 pin male/female XLR
●LED lamp connector
●Power input: DC 9V 1000mA
●Dimension: 520mm×183mm×73mm
●Net Weight: 2.7kg
●Item No : ML-C02
●DMX512/1990 Standard
●Total of 384 output channels
●30 banks have 8 programmable scenes
●16 slider for manual control of channels
●Run last CHASE or BANK continuous when power on again
●Midi control over banks, chases and blackout
●Record up to 6 programmable chases with fade time and speeds
●LED function and program display
●Built in microphone for music triggering
●Auto mode program controlled by fade time sliders
●DMX in/out: 3 pin male/female XLR
●LED lamp connector
●Power input: DC 9V 1000mA
●Dimension: 520mm×183mm×73mm
●Net Weight: 2.7kg
